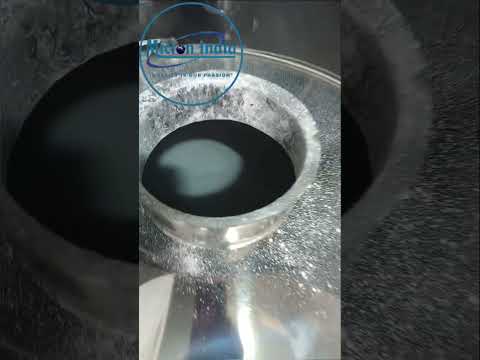

24Inch Single Deck Vibro Sifter

24 Inch Vibro Sifter – Technical Specification

Machine Type:Vibro Sifter / Vibratory Screening Machine
Application:Used for separation, grading, and sieving of powder, granules, or slurry based on particle size.

Basic Specifications

• Screen Diameter:24 Inch (˜ 600 mm)
• Production Capacity:Approx. 60 – 225 kg/hr (depends on material and mesh size)
• Motor Power:0.5 HP to 1 HP, 3 Phase
• Operating Speed:Approx. 1440 RPM (typical vibro motor speed)
• Power Supply:415 – 440 V, 3 Phase, 50 Hz

Construction Details

• Contact Parts Material:SS 304 / SS 316 / SS 316L
• Non-Contact Parts:SS 304 or Mild Steel (Optional)
• Screen Material:Stainless Steel Wire Mesh
• Mounting:Spring-mounted body for vibration isolation
• Deck Options:Single / Double / Triple Deck Available

Design Features

• Gyratory vibration generated by vertically mounted vibro motor
• Adjustable eccentric weights for different screening patterns
• Easy dismantling and cleaning
• Portable and compact design
• Low noise and low maintenance operation
• Top feeding and side/bottom discharge arrangement

Approximate Dimensions

• Charging Height:Around 900 – 1200 mm
• Discharge Height:Around 650 – 750 mm
  (Varies by manufacturer design)

Optional Accessories

• Magnetic trap / anti-static system
• Flameproof electricals
• Different mesh sizes
• Dust cover / lid
• Additional decks for multi-grading

If you want, I can also preparepharma-grade GMP specification formatormarketing catalogue style descriptionlike your previous blender and roaster descriptions.

Screw Conveyor – Details & Uses

Machine Overview

AScrew Conveyoris a mechanical conveying system used for transporting powders, granules, semi-solid materials, and bulk solids from one point to another using a rotating screw (auger) inside a tubular or U-shaped trough.

Construction Details

Main Components

• Screw / Auger:Helical blade mounted on a shaft that moves material forward
• Conveyor Housing:Tubular pipe or U-trough enclosing the screw
• Drive Unit:Motor with gearbox for rotation
• Inlet Hopper:Feeding point for material loading
• Discharge Outlet:Point where material is discharged
• End Bearings:Supports the rotating shaft
• Couplings & Seals:Prevent leakage and ensure smooth operation

Technical Specifications(Typical Range)

• Capacity:50 kg/hr to several tons/hr (depends on diameter & pitch)
• Screw Diameter:50 mm to 500 mm or more
• Length:As per requirement (1 meter to 10+ meters)
• Motor Power:0.5 HP to 10 HP (depending on load)
• Speed:30 – 150 RPM
• Material of Construction:
  • Contact Parts: SS 304 / SS 316
  • Non-Contact Parts: SS / Mild Steel
• Type:Horizontal, Inclined, or Vertical

Working Principle

The motor rotates the screw inside the housing.
As the screw rotates, material placed at the inlet is pushed forward along the screw flights and discharged at the outlet. The conveyor can handle continuous material flow.

Uses / Applications

Pharmaceutical Industry

• Powder transfer between machines
• Granule handling
• Tablet and capsule raw material transfer

Food Industry

• Flour, sugar, spices, and grain conveying
• Powder ingredient feeding in mixers

Chemical Industry

• Fertilizer, pigments, and chemical powder transport

Agriculture Industry

• Grain handling
• Animal feed transfer

Other Industries

• Cement and construction material conveying
• Plastic granule transfer

Advantages

• Closed conveying system (dust-free operation)
• Compact and space saving
• Continuous material handling
• Customizable length and capacity
• Low maintenance
• Suitable for inclined conveying
